ATV GRADER BLADE

ATV GRADER BLADE

Product Description

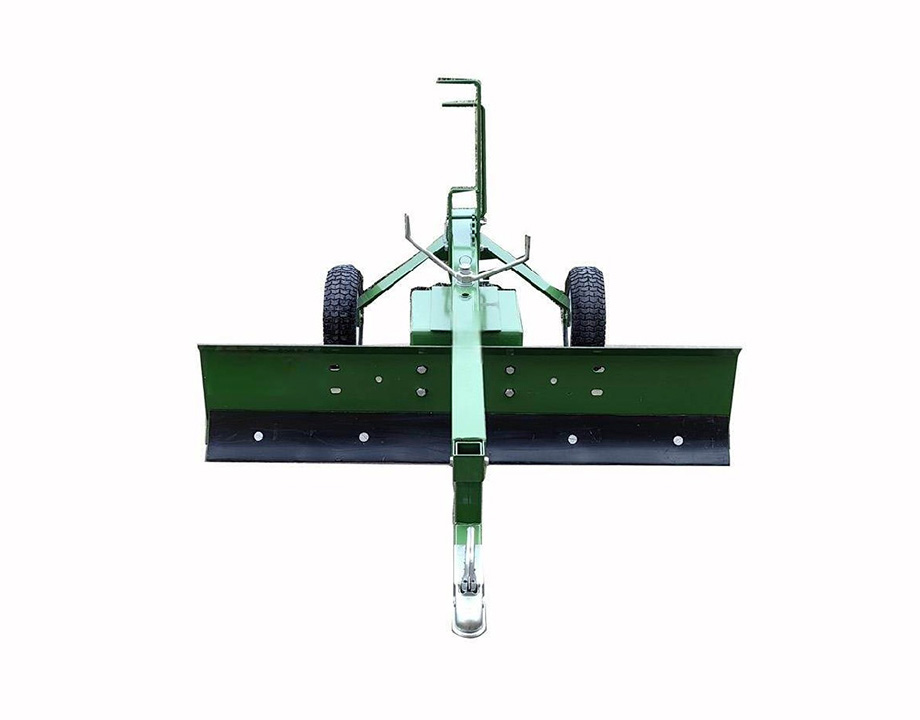

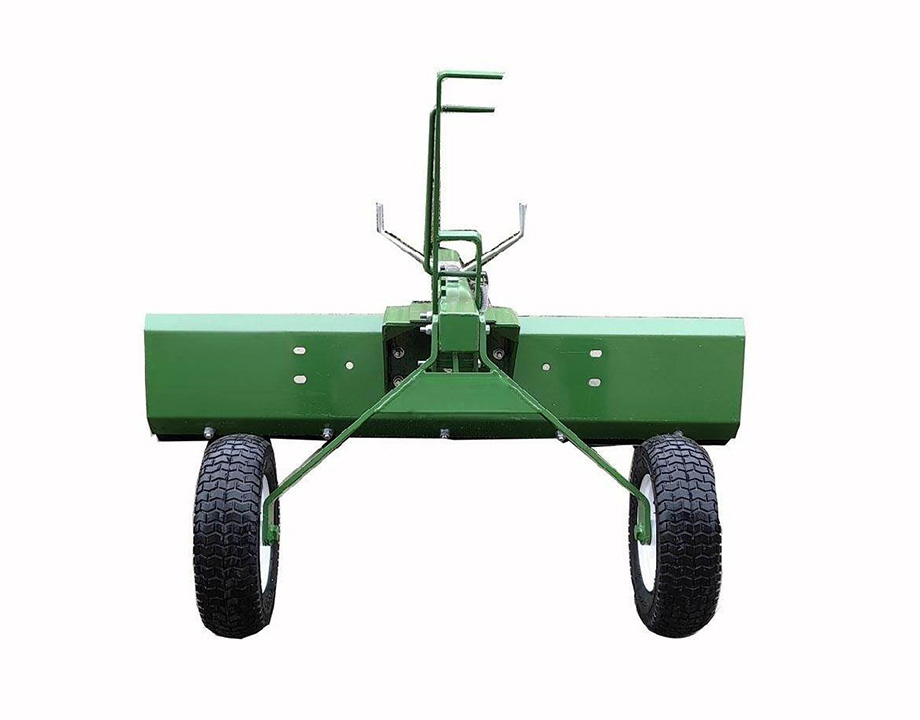

Use this grader blade to help move dirt, snow and more. The grader blade moldboard has adjustable reverse and forward positions. The blade can be rotated 360 ° on a king pin and can be offset 6" from each side of the center. It has a replaceable and reversible cutting edge. The cutting angle locks into position by a heavy duty 3/4" pin. It can side shift and tilt by loosening or removing 5 bolts.

Inquire Now

Add To Cart

Product Description

Positions, can be rotated 360 degrees on a 3" king pin.

Cutting angle locks into position by a heavy duty 3/4“ pin.

Adjustable moldboard.

Can be offset 6" from each side.

Replaceable high-carbon steel cutting edge.

Powder coated or galvanized optional.

Rear wheels are optional.

Model	K4AGB	K5AGB	K6AGB
Working width	1200	1500	1800
No. Of Cutter Edge	1	1	1
Tow Behind	Coupling	Coupling	Coupling
Rotation Allows Angular	360°	360°	360°
Wheel	2	2	2
