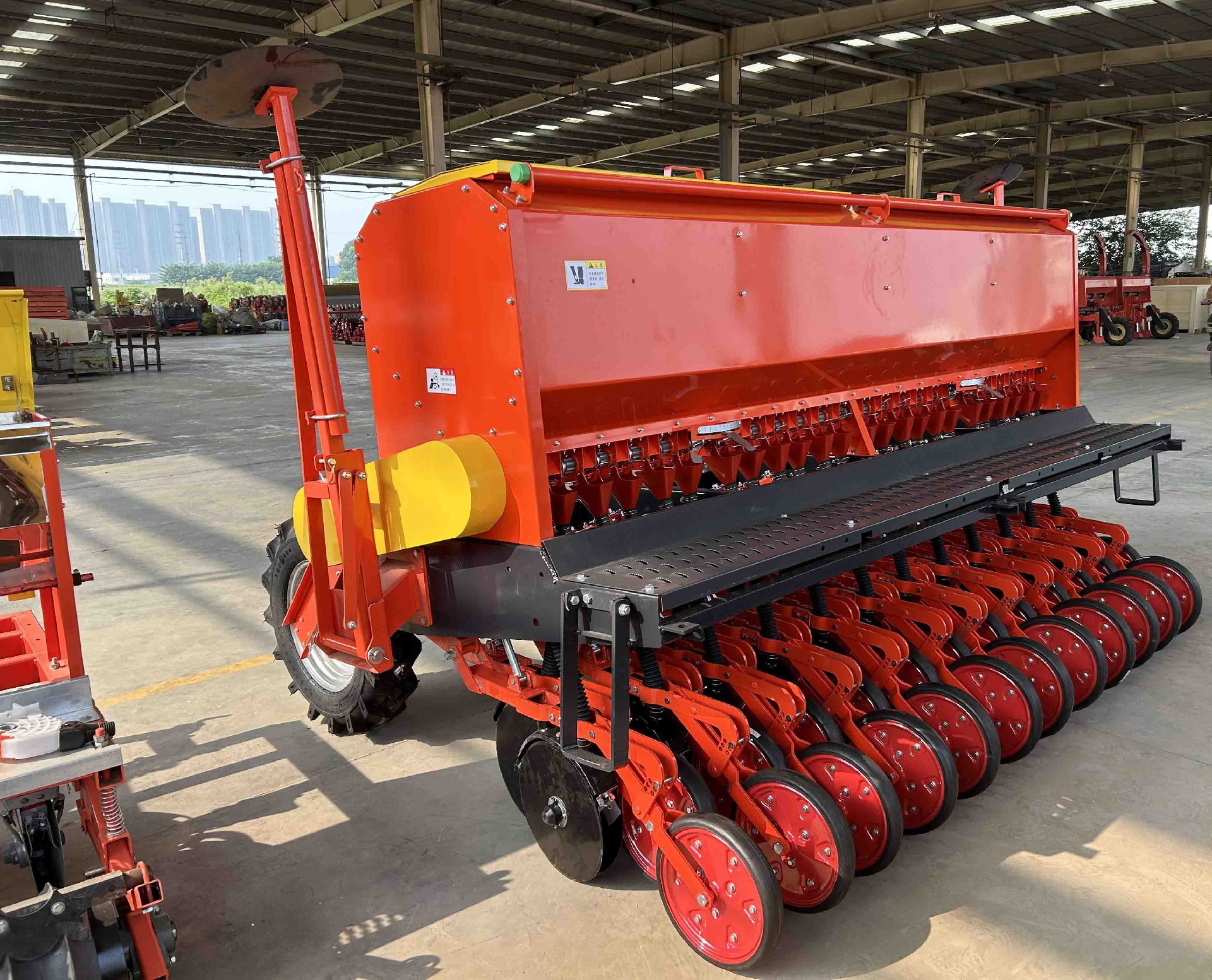

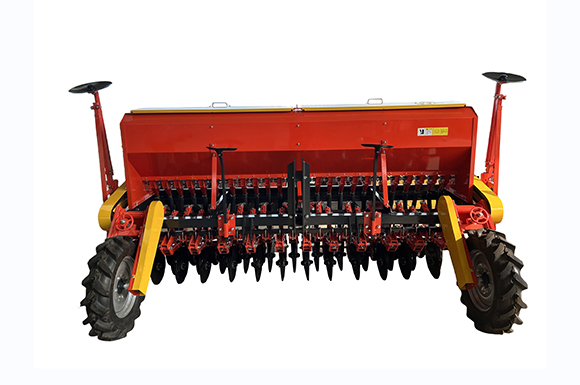

This fertilizer seed drill is designed for use in plains, sowing such crops as wheat, grain, sorghum and soybean.

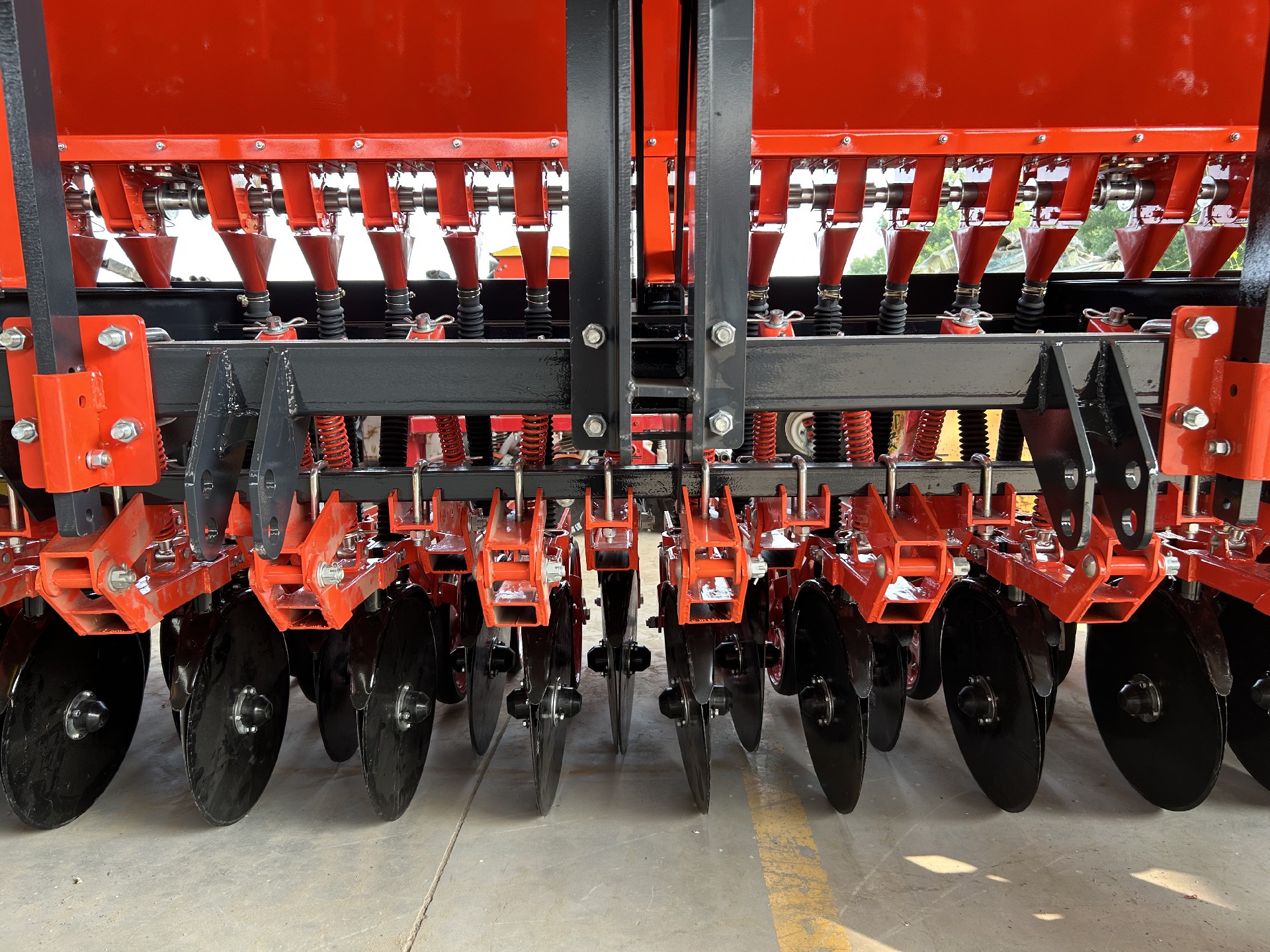

This drill adopts the double-disc, double-row-bearing furrow openers, which are notable for low penetration resistance while high strength. The seed-release unit and fertilizer-release unit adopt externally fluted rollers made of iron. The seed box and fertilizer box with large capacity are suitable for use in large tracts. The power transmission is through chain and sprocket, featuring high reliability, easy adjustment, and quick maintenance.
| Model | K2BFX-20 | K2BFX-24 |
| Driven power(kW) | 40-60 | 55-74 |
| Overall dimension(mm) | 1900×3240×1560 | 2240×3900×2100 |
| Working speed(m/s) | 1.11-1.67 | 1.11-1.67 |
| Efficity(hm²/h) | 1.2-1.8 | 1.44-2.16 |
| Working width(cm) | 300 | 360 |
| Row space(cm) | 15 | 15 |
| Working rows | 20 | 24 |
| Seed-release unit | Externally fluted iron roller | Externally fluted iron roller |
| Seed-release Qty. | 20 | 24 |
| Fertilizer-release unit | Externally fluted iron roller | Externally fluted iron roller |
| Fertilizer-release Qty. | 20 | 24 |
| Opener Type | Double disc | Double disc |
| Opener Qty. | 20 | 24 |
| Working depth(mm) | 30-80 | 30-80 |
| Seed/fertilizer hopper volume(L) | 325/350 | 430/410 |
| Power transmission | Chain transmission | Chain transmission |
| Tyre type | Runner tyre | Rubber tyre |
| Diameter of tyre(mm) | 710 | 710 |

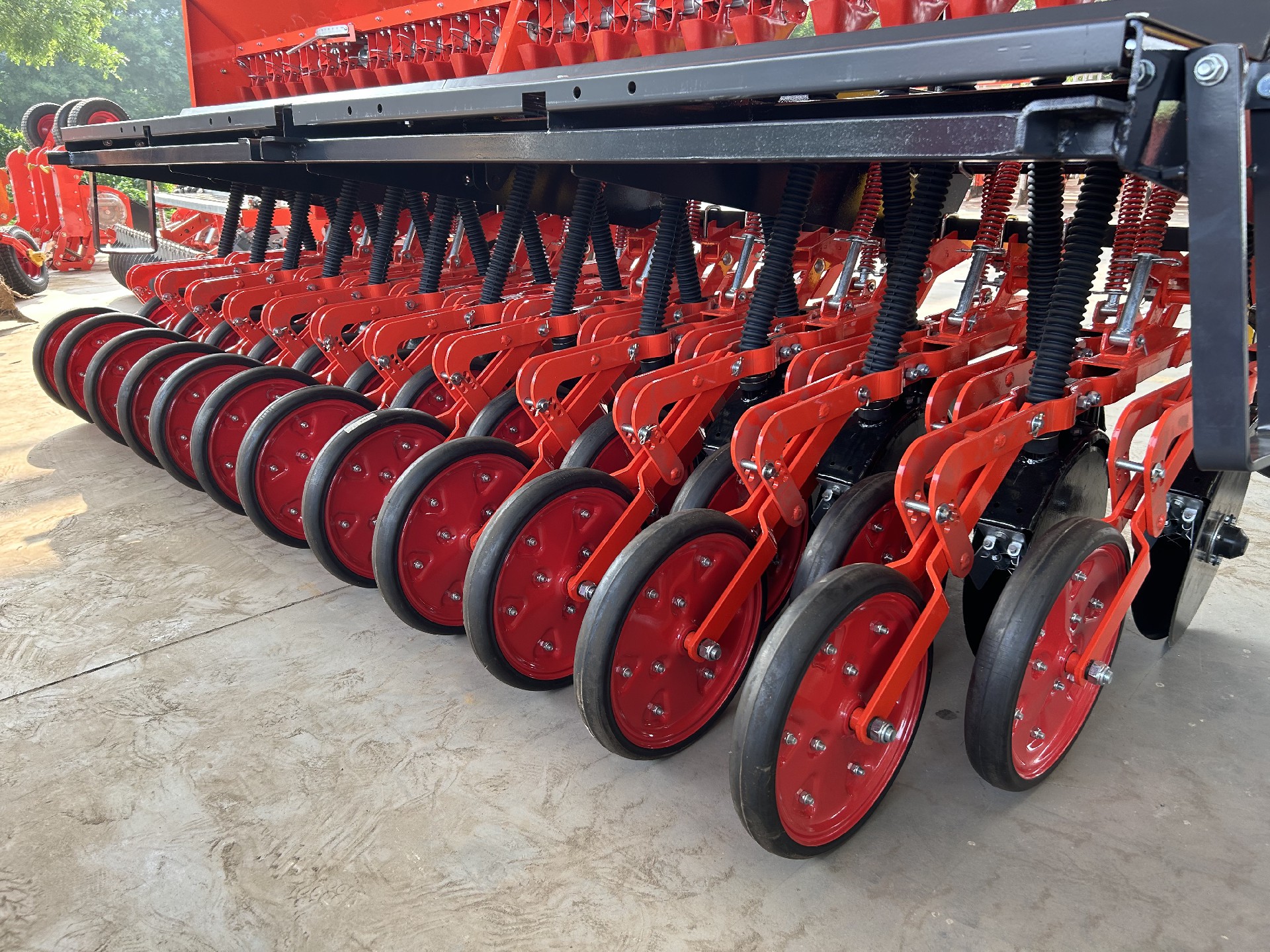

| Press type | Press wheel | Press wheel |
| Weight(kg) | 900 | 1080 |
