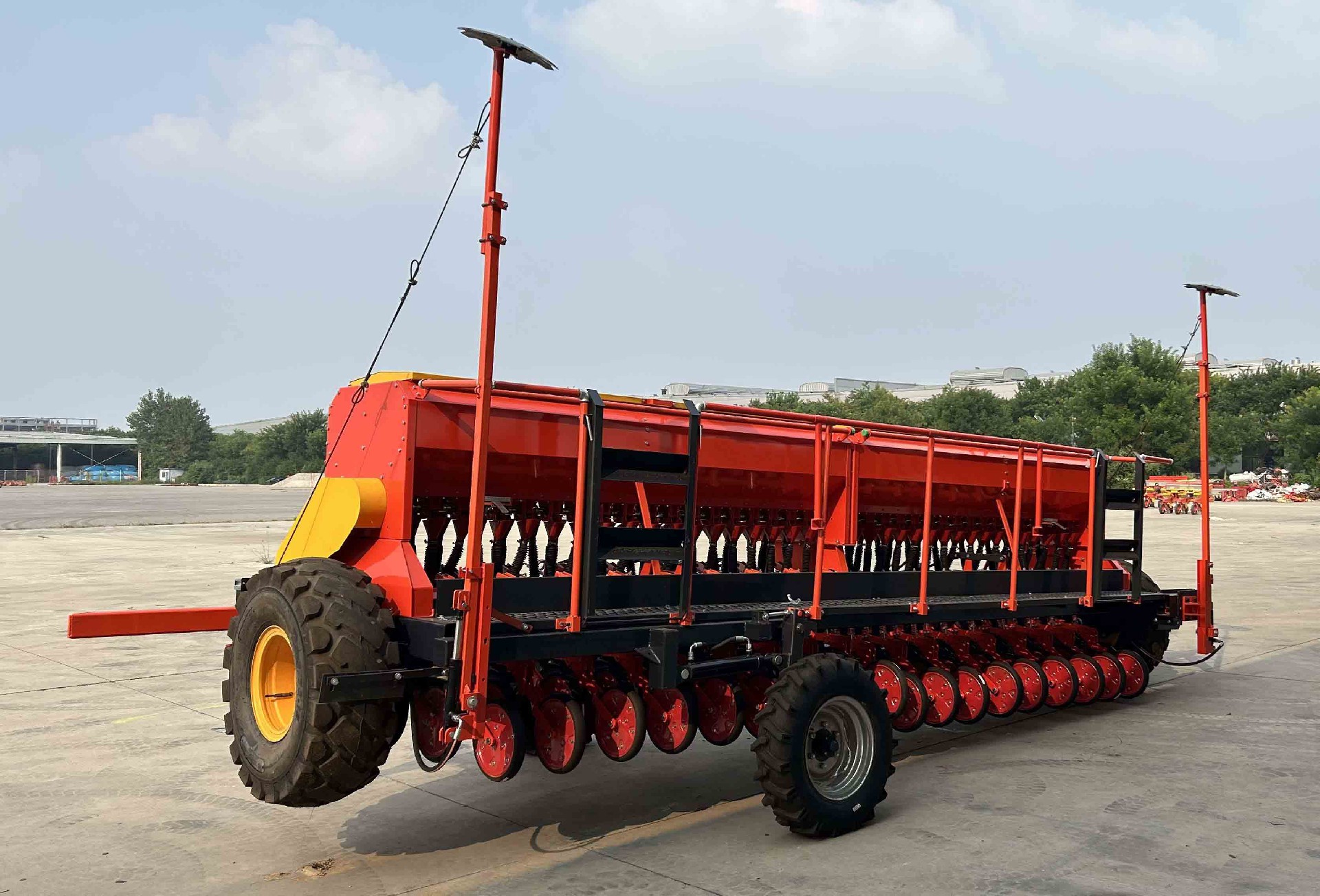

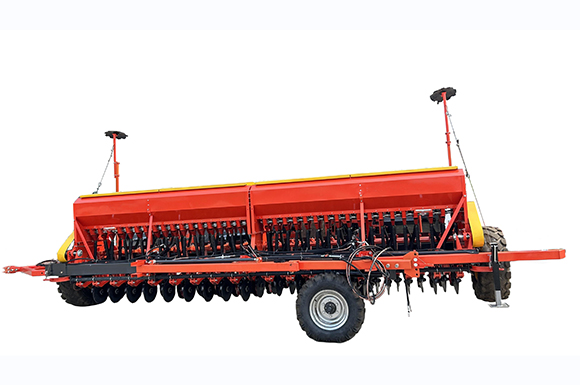

Grain Seeder K2BFY

Product Description

ModelK2BFY-24K2BFY-28K2BFY-36
Overall dimensions for operation(cm)376×736×166376×796×166436×978×166
Overall dimensions for transport(cm)376×438×166376×498×166756×224×188
Mass of drill(kg)1450+65016802250+650
Working width(cm)360420540
Sowing depth(mm)30~8030~8030~80
Power source(kW)40.4-88.244.1-95.555-132.3
Power transmissionChain transmissionChain transmissionChain transmission
Fertilizer box capacity(L)430500645
Seed box capacity(L)410478615
Ground clearance for transport(mm)≥150≥150≥150
Seeding unitExternally fluted iron rollerExternally fluted iron rollerExternally fluted iron roller
Fertilizing unitExternally fluted iron rollerExternally fluted iron rollerExternally fluted iron roller
Field efficiency(hm2/h)2.16-3.62.52-4.23.24-5.4
Working speed(km/h)6-106-106-10
Attachment to tractorTowingTowingTowing
Number of rows(basic)242836
Spacing between front and rear openers(mm)260260260
ClutchJaw clutchJaw clutchJaw clutch
Shifting mechanismHydraulic transmissionHydraulic transmissionHydraulic transmission
OpenerDouble-disc, double-row-bearing openerDouble-disc, double-row-bearing openerDouble-disc, double-row-bearing opener
RollerPneumatic rubber tyrePneumatic rubber tyrePneumatic rubber tyre
Basic row spacing (mm)150(adjustable)150(adjustable)150(adjustable)
