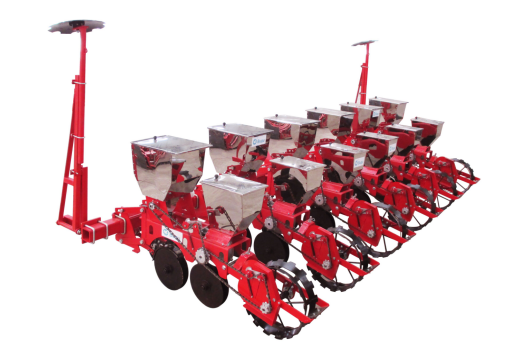

2KFY-C series precision planter is a kind of tractor-mounted with the 40-120hp tractor, multifunction farming implement. The main characters as below:
1. Adopt picker finger seed drill metering precision, sowing fast and accurate. Especially the different size of seeds.
2. It is can be Sowing corn or soybean by replacing the seeding plate.
3. Adopt unit contouring, perform the same drilling depth and fit for different condition of soil.
4."V” Type ground wheel with big weight, make good performance to the pressing.
5. It is convenience to change the sprockets by adopting double pitch chain , working reliable, tight and elastic tension.
| Model | 2KFY-2C | 2KFY-3C | 2KFY-4C | 2KFY-5C | 2KFY-6C | 2KFY-8C |
| HP | 20-50 | 40-100 | 50-100 | 70-100 | 70-120 | 70-180 |
| Rows | 2 | 3 | 4 | 5 | 6 | 8 |
| Working width (mm) | 1700 | 2600 | 3500 | 4400 | 5300 | 6200 |
| Weight (kg) | 360 | 540 | 660 | 800 | 980 | 1230 |
| Seed hoop capacity (L) | 35×2 | 35×3 | 35×4 | 35×5 | 35×6 | 35×8 |
| Fertilizer hoop capacity (L) | 50×2 | 50×3 | 50×4 | 50×5 | 50×6 | 50×8 |
| Basic row space (mm) | 440-900 | 440-900 | 440-900 | 440-900 | 440-900 | 440-900 |
| Dropping distance (mm) | Corn60-240 Soyabean 18-60 | Corn60-240 Soyabean 18-60 | Corn60-240 Soyabean 18-60 | Corn60-240 Soyabean 18-60 | Corn60-240 Soyabean 18-60 | Corn60-240 Soyabean 18-60 |
| Efficiency (ha/h) | 0.4-1.6 | 0.6-2.4 | 0.8-3.2 | 1-4 | 1.2-4.8 | 1.6-6.4 |
| Opener type | Double disc | Double disc | Double disc | Double disc | Double disc | Double disc |
