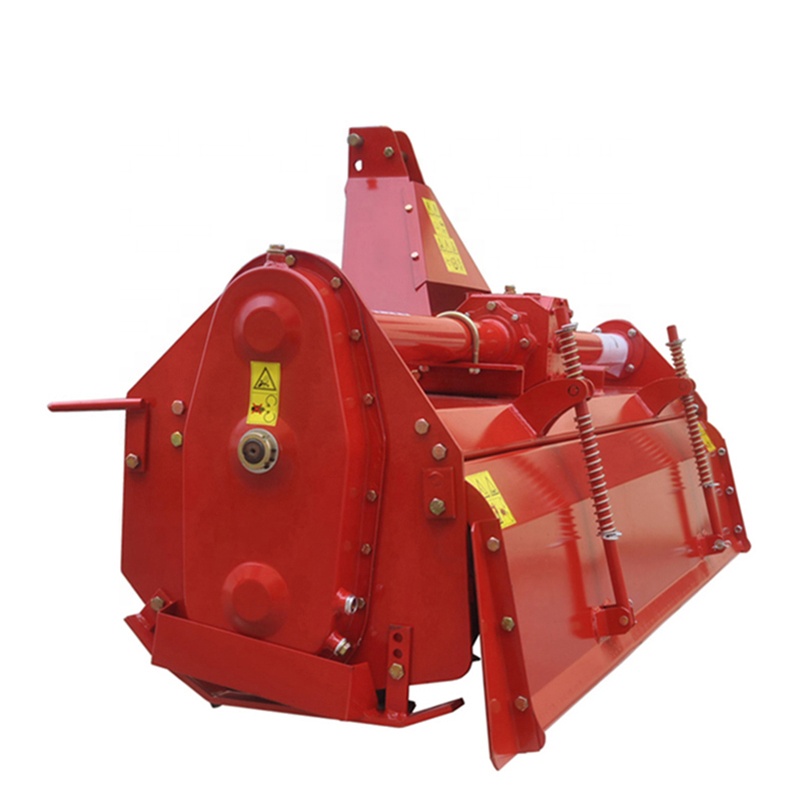

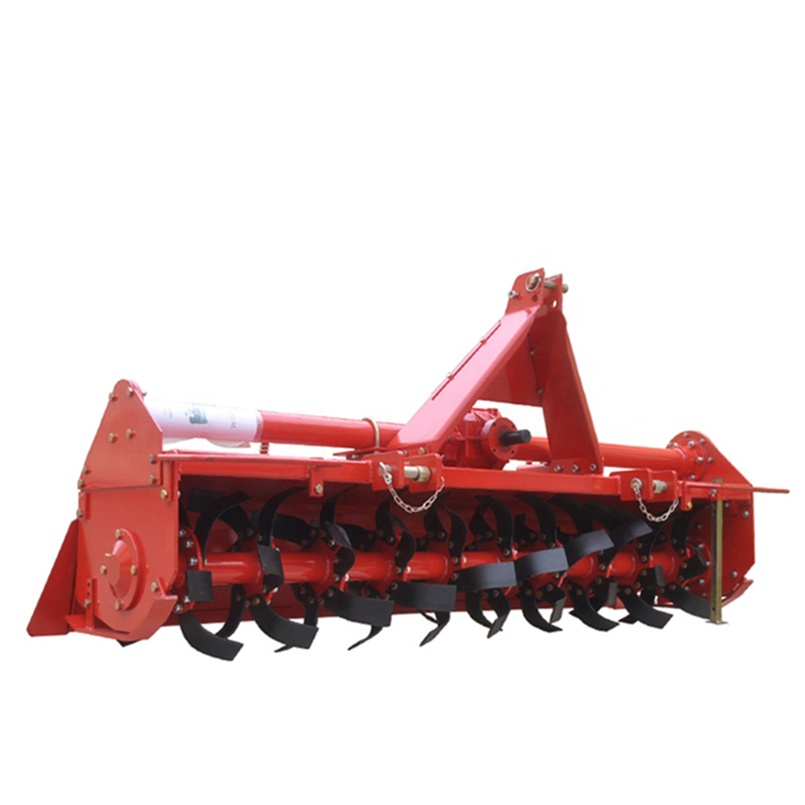

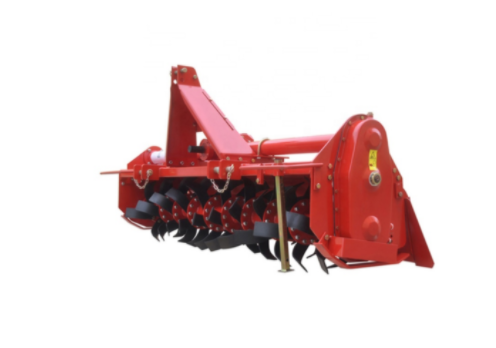

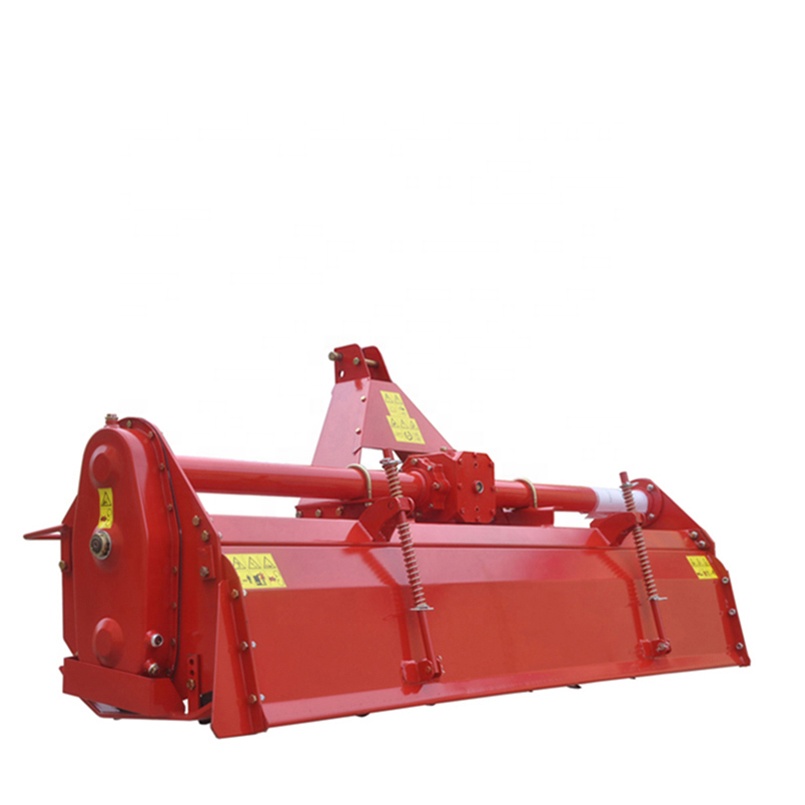

KTMZ model rotary tiller（Gear drive）with 4 blades/flange
We also can produce them with 6 blades/flange if you need
The 3 point linkage of TMZ150-TMZ180 can be moved by adjust the screws.
| Model | Working | Blades shaft speed | Number of | Tilling depth | Fitted power | Net weight | Gross weight | Package size: (cm*cm*cm) |
| width | (rpm) | blades | (cm) | (hp) | (kg) | (kg) | ||
| (cm) | ||||||||
| KTMZ120 | 120 | 232 | 24 | 8-14 | 25-30 | 242 | 277 | 145*73*73 |
| KTMZ120 | 120 | 232 | 36 | 8-14 | 25-30 | 257 | 292 | 145*73*73 |
| KTMZ130 | 130 | 232 | 28 | 8-14 | 30-35 | 252 | 287 | 155*73*73 |
| KTMZ130 | 130 | 232 | 42 | 8-14 | 30-35 | 267 | 302 | 155*73*73 |
| KTMZ140 | 140 | 232 | 28 | 8-14 | 30-35 | 259 | 294 | 165*73*73 |
| KTMZ140 | 140 | 232 | 42 | 8-14 | 30-35 | 274 | 309 | 165*73*73 |
| KTMZ150 | 150 | 232 | 32 | 8-14 | 35-40 | 269 | 309 | 175*73*73 |
| KTMZ150 | 150 | 232 | 48 | 8-14 | 35-40 | 284 | 324 | 175*73*73 |
| KTMZ160 | 160 | 232 | 32 | 8-14 | 40-45 | 274 | 324 | 185*73*73 |
| KTMZ160 | 160 | 232 | 48 | 8-14 | 40-45 | 289 | 339 | 185*73*73 |
| KTMZ170 | 170 | 232 | 36 | 8-14 | 45-50 | 281 | 336 | 195*73*73 |
| KTMZ170 | 170 | 232 | 54 | 8-14 | 45-50 | 299 | 354 | 195*73*73 |
| KTMZ180 | 180 | 232 | 36 | 8-14 | 50-55 | 288 | 348 | 205*73*73 |
| KTMZ180 | 180 | 232 | 54 | 8-14 | 50-55 | 306 | 366 | 205*73*73 |
| KTMZ190 | 190 | 232 | 40 | 8-14 | 55-60 | 298 | 358 | 215*73*73 |
| KTMZ190 | 190 | 232 | 60 | 8-14 | 55-60 | 318 | 378 | 215*73*73 |
| KTMZ200 | 200 | 232 | 40 | 8-14 | 60-65 | 308 | 368 | 225*73*73 |
| KTMZ200 | 200 | 232 | 60 | 8-14 | 60-65 | 328 | 388 | 225*73*73 |
| KTMZ210 | 210 | 232 | 44 | 8-14 | 65-70 | 320 | 380 | 235*73*73 |
| KTMZ210 | 210 | 232 | 66 | 8-14 | 65-70 | 342 | 402 | 235*73*73 |
| KTMZ220 | 220 | 232 | 44 | 8-14 | 70-80 | 335 | 395 | 245*73*73 |
| KTMZ220 | 220 | 232 | 66 | 8-14 | 70-80 | 357 | 417 | 245*73*73 |
| KTMZ230 | 230 | 232 | 48 | 8-14 | 80-90 | 350 | 410 | 255*73*73 |
| KTMZ230 | 230 | 232 | 72 | 8-14 | 80-90 | 374 | 434 | 255*73*73 |
| KTMZ240 | 240 | 232 | 48 | 8-14 | 90-100 | 365 | 425 | 265*73*73 |
| KTMZ240 | 240 | 232 | 72 | 8-14 | 90-100 | 389 | 449 | 265*73*73 |
