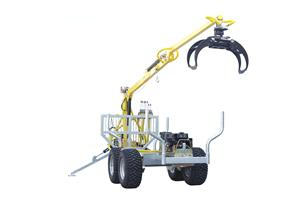

Grapple Crane K450

Model Name:Grapple Crane K450 -I without automatic rolldrive

Grapple Crane K450-II 4x4 with automatic rolldrive

Engine:7HP/5kw, electric start+ pull start

Max rotary speed:3900r/m

Pressure of oil pump: 20MPa

Pump supply oil flow:5mL/R

Working temperture:-40℃to 80℃

Length of crane arm:4.4M

Lifting capacity at max reach:200kg

Swing angle:+-180℃

Hydraulic oil tank:9.2L

Hydraulic oil :No. 50

Fuel tank for engine:6L

Demension of crane with trailer(LWHmm)4900(3850)X1580X1950

Wheel：22X11-12

Loading capacity of trailer:2000kg

Grapple crane K450-I weight:615 kg

Grapple crane K451-II weight:665kg

Grapple crane K450-II-RC weight:690kg

CE certification

Loading quantity in container:10 /20FT 20/40FT

Optional hydraulic winch

Optional dumping box

Optional bucket

Optional scissor
