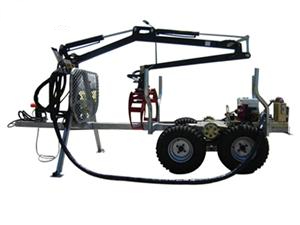

Grapple Crane K350

Specification
Engine:7HP/7kw, pull start
Max rotary speed:5000r/m
Pressure of oil pump: 18MPa
Pump supply oil flow:6ML/R
Working temperture: -40℃to 80℃
Length of crane arm:3.5M
Lifting capacity of Max.arm reach:400kg
Swing angle:+-180℃
Weight of crane:90kg
Whole machine weight of Crane K350-I ,580kg
Whole machine weight of Crane K350-II:630kg
Max loading of trailer:1500kg
Container Loading:28 units/40hc, 12 units/20FT
2006/42/EC certification
Crane K350-I: without automatic rolldrive
Crane K350-II:4x4 with automatic rolldrive
Hydraulic Winch Specification
Remote control:waterproof
Remote control area:30M
Rated line pull:800KG
Speed:10-25m/min
